τ-Ring: Smart Ring for Physiobehavioral Computing

December 1, 2024 · 2 min read
projects

A research-grade smart ring platform for capturing multimodal physiological and behavioral signals with onboard computing.

Overview

τ-Ring is a hand-worn research platform designed for physio-behavioral computing. It captures research-grade raw multimodal physiological and behavioral signals including PPG, motion, and temperature with onboard computing capabilities to drive frontier research in HCI, digital health, and behavioral science.

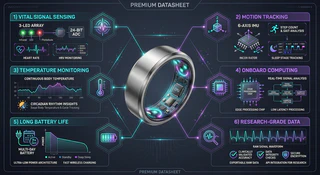

Key Features

  • Vital Signal Sensing — High-fidelity photoplethysmography (PPG) with 3-LED array and 24-bit ADC for heart rate and HRV monitoring
  • Motion Tracking — 6-axis IMU (accelerometer + gyroscope) for precise gesture recognition and activity monitoring
  • Temperature Monitoring — Continuous body temperature tracking for health and circadian rhythm research
  • Onboard Computing — Edge processing capabilities for real-time signal analysis and privacy-preserving computation
  • Long Battery Life — Multi-day operation for continuous longitudinal studies
  • Research-Grade Data — Raw signal access for algorithm development and validation

Technical Specifications

Sensors

  • PPG: 3-LED array (green, red, infrared) with 24-bit ADC
  • IMU: 6-axis accelerometer and gyroscope
  • Temperature: High-precision thermistor
  • Sampling rates: Up to 100Hz for PPG, 200Hz for IMU

Computing

  • Onboard microcontroller for edge processing
  • Wireless data transmission (Bluetooth)
  • Configurable sampling and processing pipelines

Design

  • Lightweight and comfortable for 24/7 wear
  • Water-resistant design
  • Multiple size options

Applications

  • HCI Research — Gesture recognition, interaction techniques, context-aware computing
  • Digital Health — Continuous health monitoring, disease detection, wellness tracking
  • Behavioral Science — Activity recognition, sleep analysis, stress assessment
  • Algorithm Development — Signal processing, machine learning model training and validation

Research Publication

τ-Ring has been published in top-tier academic conferences. The platform enables researchers to collect high-quality physiological and behavioral data in naturalistic settings.

Read the Original Paper →

For Researchers

τ-Ring provides an open research platform with:

  • Raw sensor data access
  • Customizable firmware
  • Development SDK and tools
  • Sample datasets and baseline algorithms
  • Community support

Perfect for academic labs, research institutions, and industry R&D teams working on wearable computing and physiological sensing research.
